Velox Racing™ Titanium Heat Shield Wrap
Velox Racing™ Titanium Heat Shield Wrap
Couldn't load pickup availability
SPECIFICATIONS
Material Type: Basalt Fiber
External Testing Certification: ISO9000
Item Length: 15m

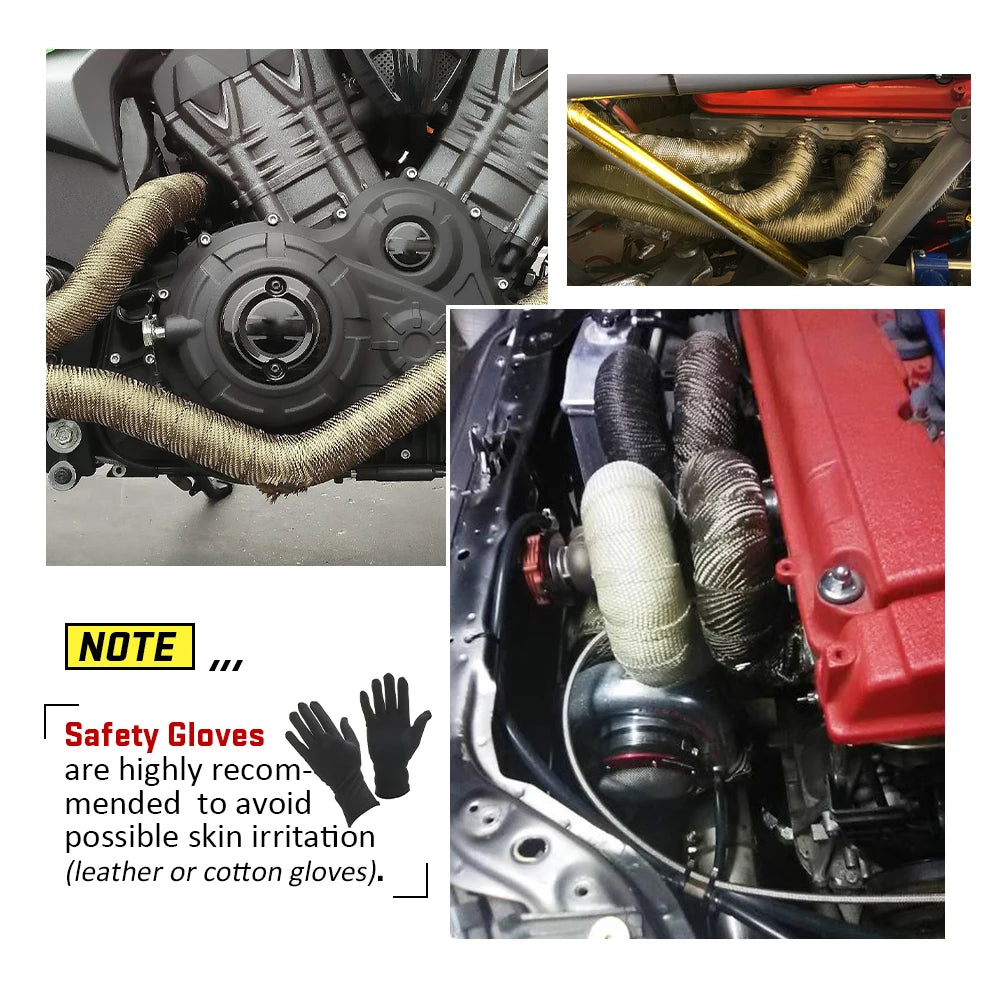

Application: Header, Turbo Manifold, Downpipe, Motorcycle piping etc.

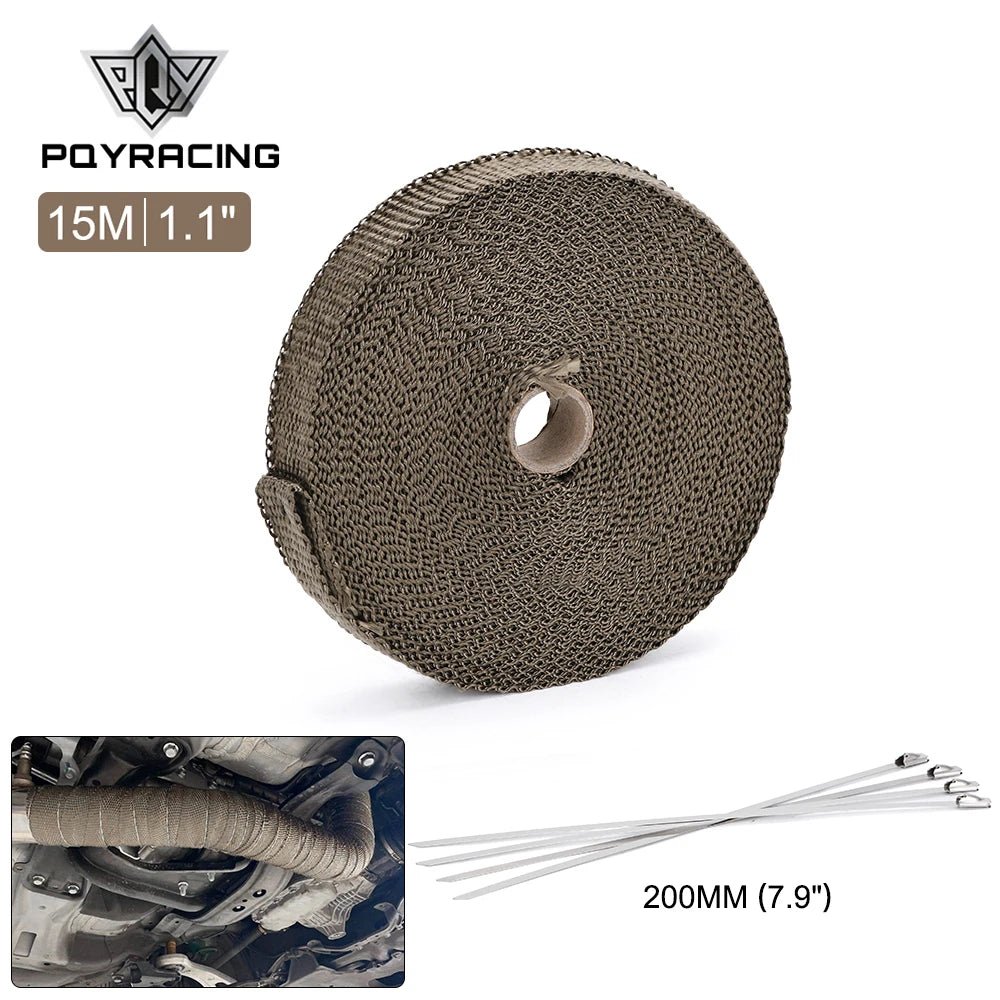

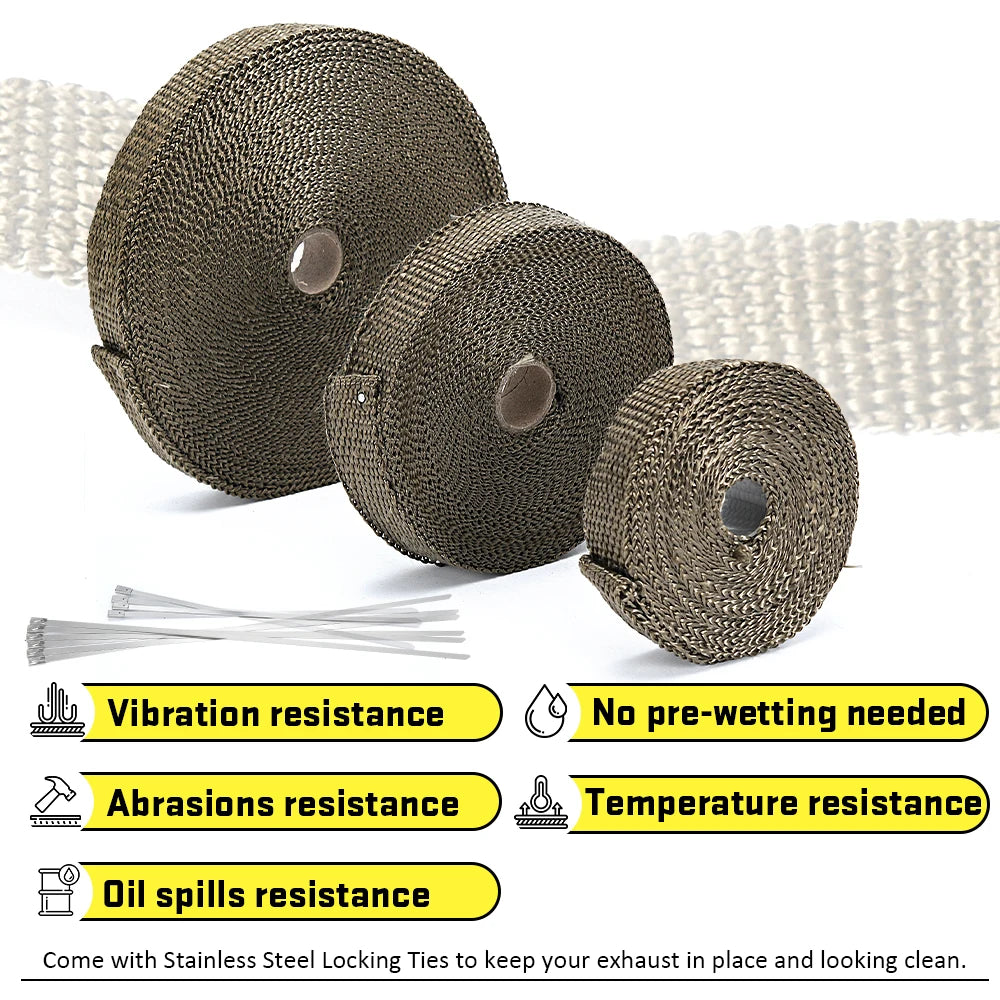

Package: 1 x heat wrap,4 x stainless steel zip ties
1"/25MM 15M Titanium Exhaust Header Pipe Heat Wrap Tape With Locking Ties Thermal Protection Roll Shield Car Accessories
Application:
Universal(For Header, Turbo manifold, Downpipe, Motorcycle piping).
Vehicle compatibility charts are for REFERENCE ONLY. Check your vehicle with OEM below to match your needs
Specification:
100% quality assurance tested, more responsive, less expensive, easier to install.
Withstand direct heat up to 1652°F(900°C).
Pre-wetting roll not necessary for wrapping.
Optimizes horsepower, performance and fuel economy.
Reduces underhood temperatures and maintains high exhaust gas velocity.
Material :

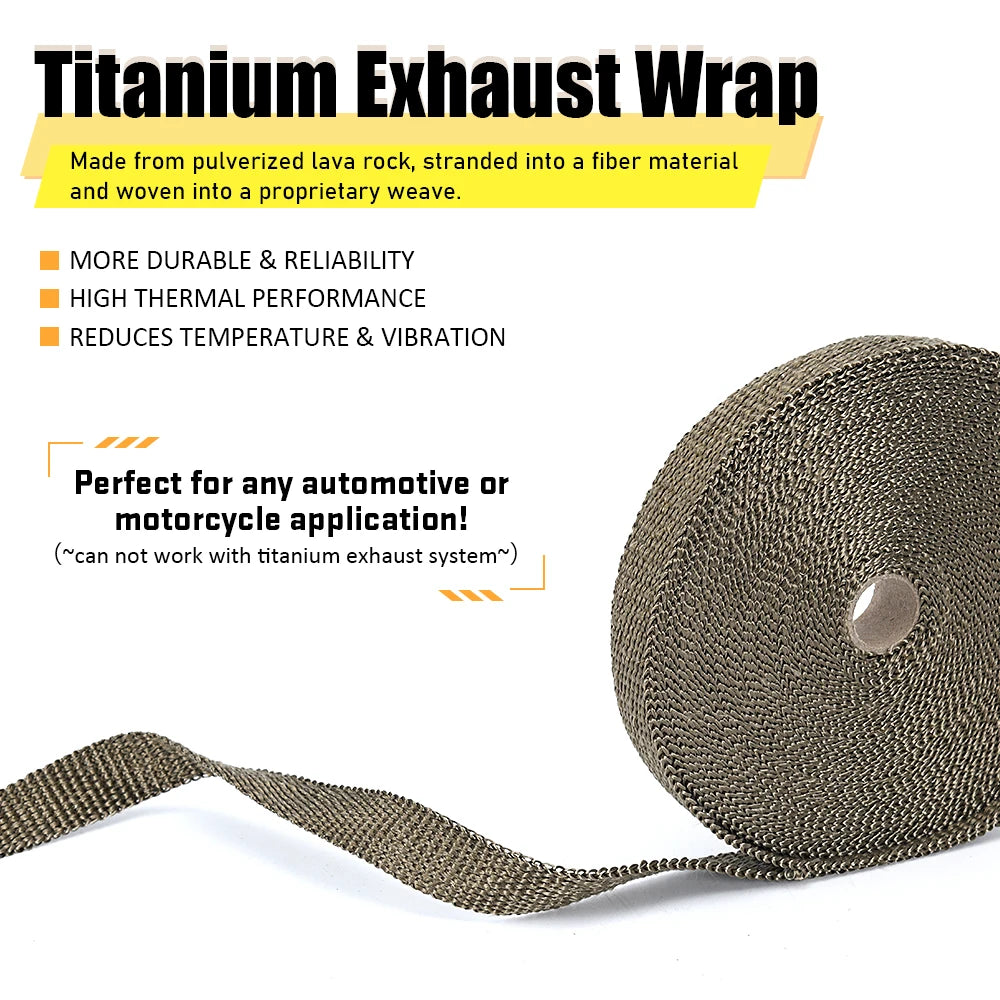

Material: made of high quality Basalt Fiber
Package Included:
1x Heat Wrap;
4x 200mm Locking Cable Tie.(100% Brand New Never Used Or Installed)
Note:

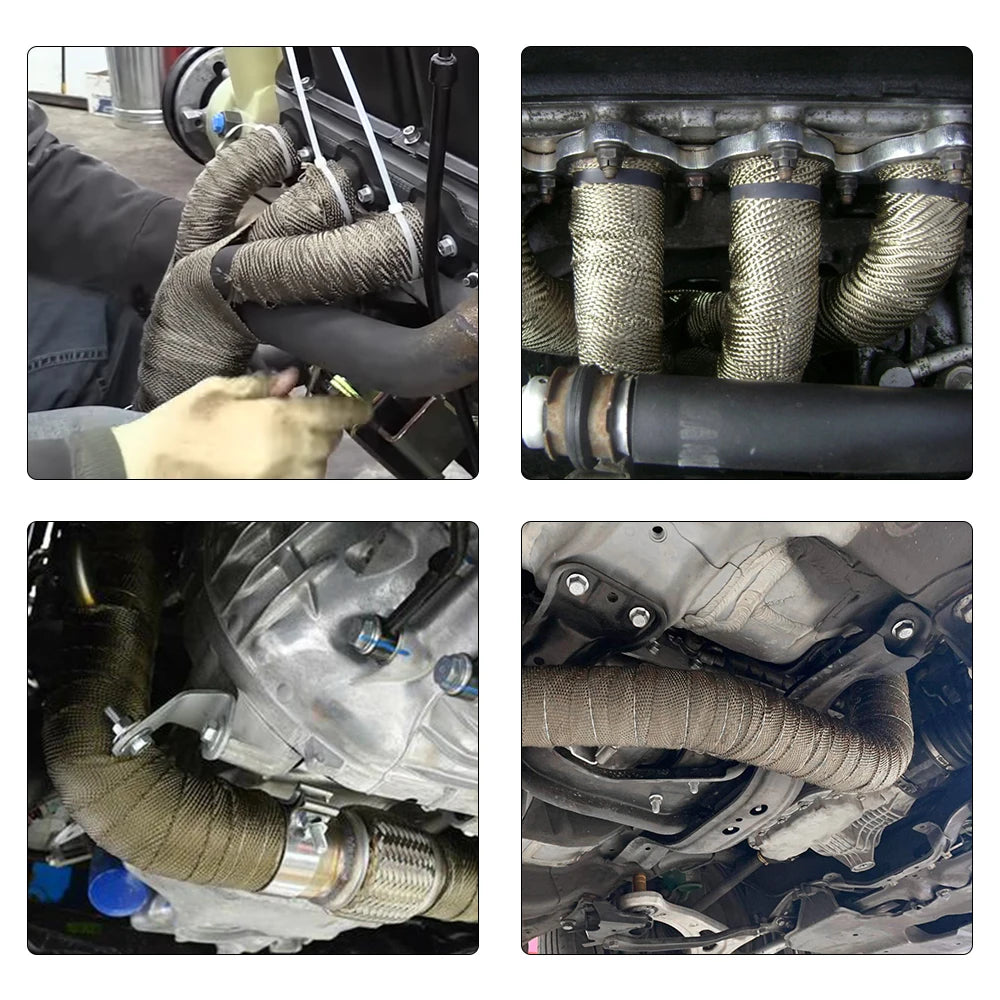

1. Fold 3/4” at the edge of the exhaust wrap, tuck the 3/4” fold under the exhaust wrap, and place on the pipe. This reduces fraying on the end of the wrap.
2. Make one full initial wrap around the pipe, roughly around pipe 3 to 4 more times, secure wrap at flange with locking tie.
3. After securing end, continue to wrap around pipe, using 1/4” overlap with each pass, and keeping tension on the exhaust wrap.
4. If primary tubes become so close together, wrap multiple pipes as one. If bend less than 90°, add approximately 8” of wrap; if bend greater than 90°, add approximately 14” of wrap. And maintain the same 1/4” overlap.
5. On the final pass around the pipe, fold over about 3/4” of the wrap, and tuck it underneath itself. Then secure the last coil of wrap with locking tie.
All items are Brand New .
We sell DIY (Do It Yourself) Items with a few exceptions.
We take no responsibility in teaching you how to install.
Professional installation is strongly recommended.
