SPECIFICATIONS

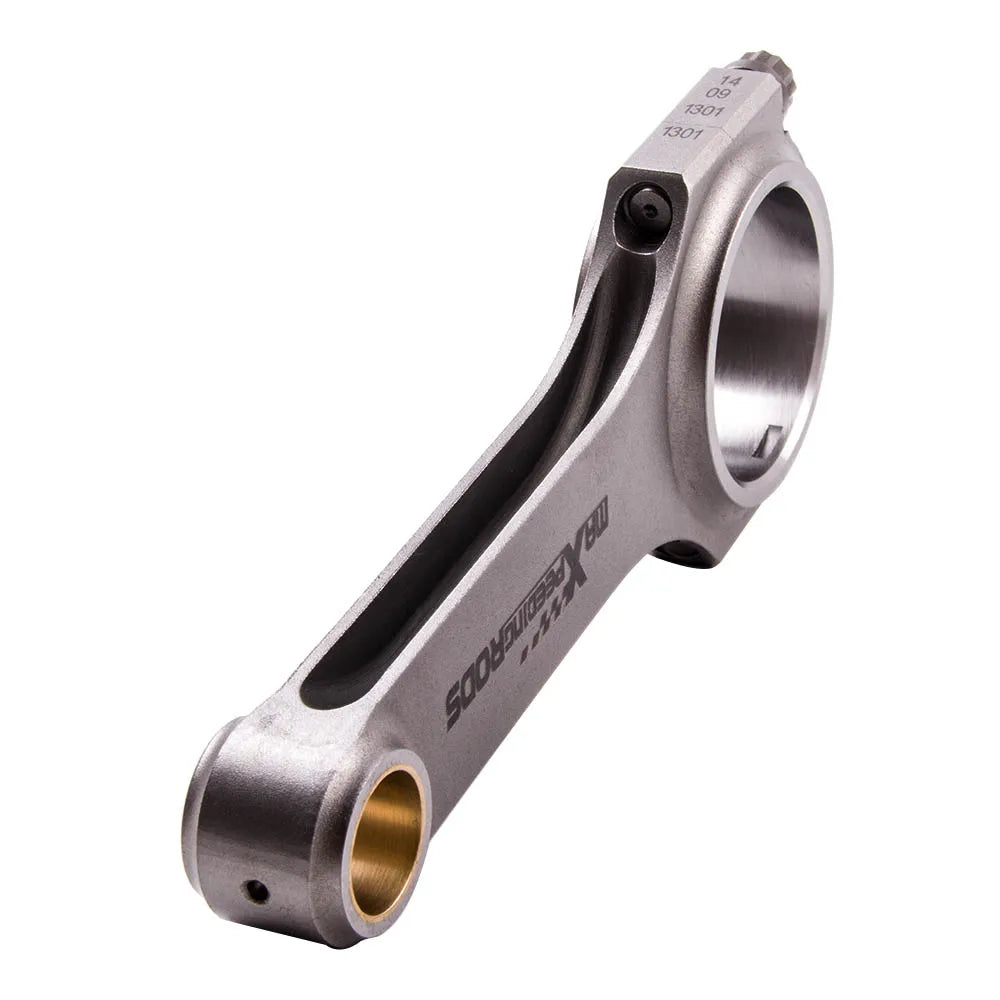

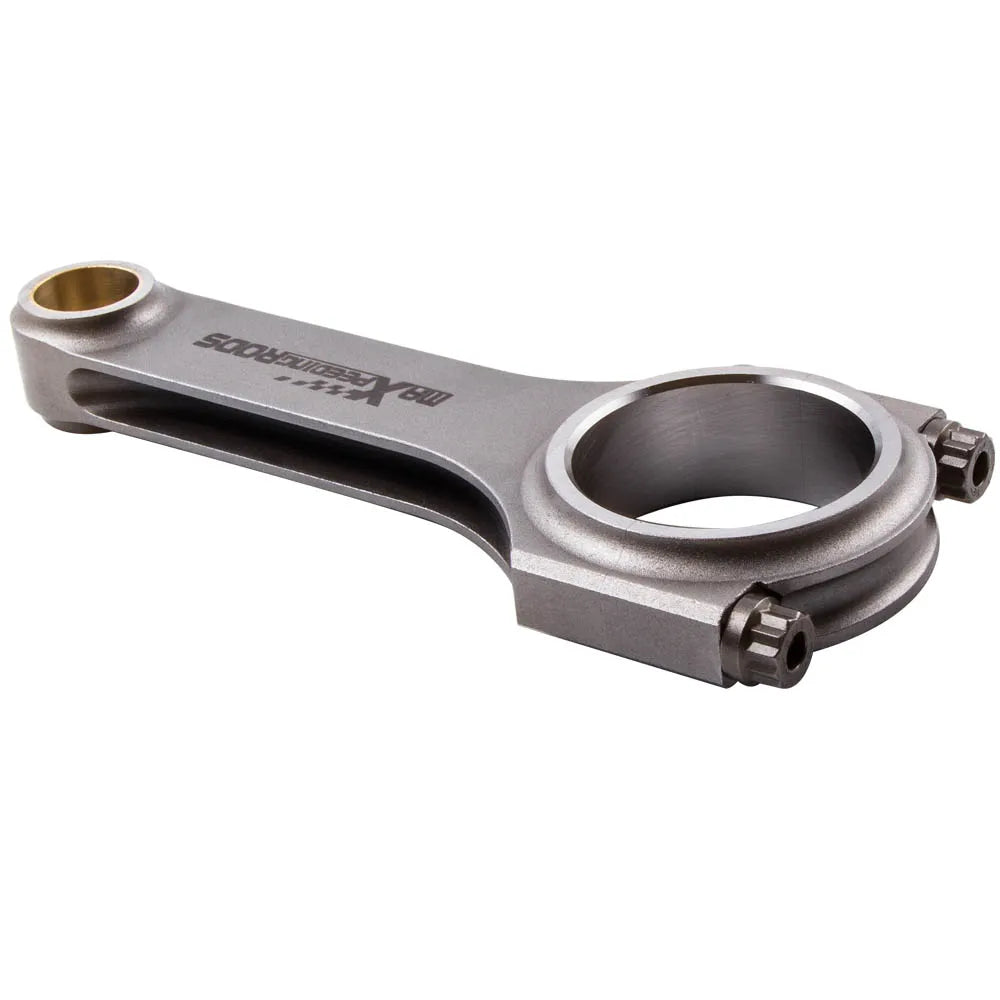

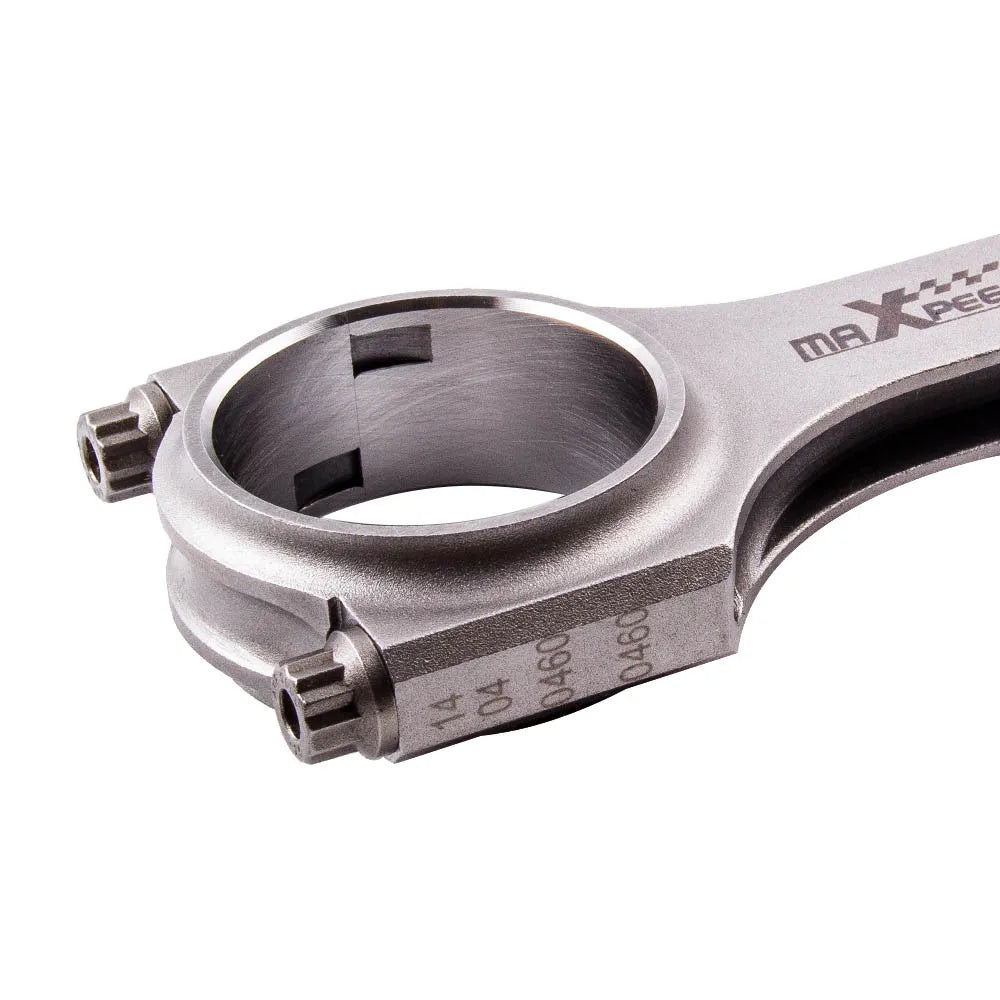

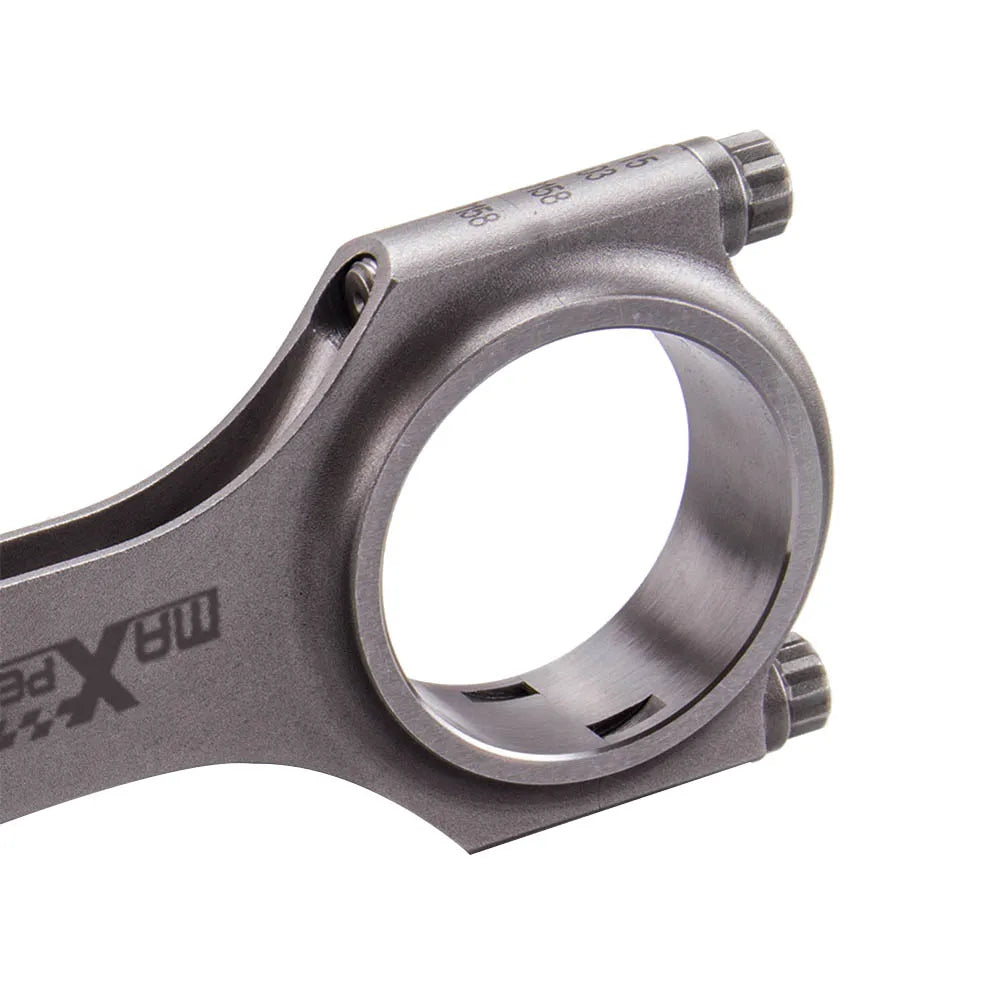

Geschmiedet, H-Schaft Pleuel, Sport-Pleuel, Pleuelstange

Material: Forged 4340 aircraft chrome moly quality steel

Model Number: For BMW M60 M60B40 4.0L M62 4.4L

Small end diameter: 22mm

Center to center length: 143mm

Rod Wrist Pin Style: Floating

Application:: for BMW M60 M60B40 4.0L M62 4.4L Connecting Rods

Product Type:: This is an aftermarket replcement part.

Product Note:: Due to the light and different screen display,the picture and product maybe slightly different

Fitment: For BMW M60 M60B40 4.0L M62 4.4L

Condition: Brand New

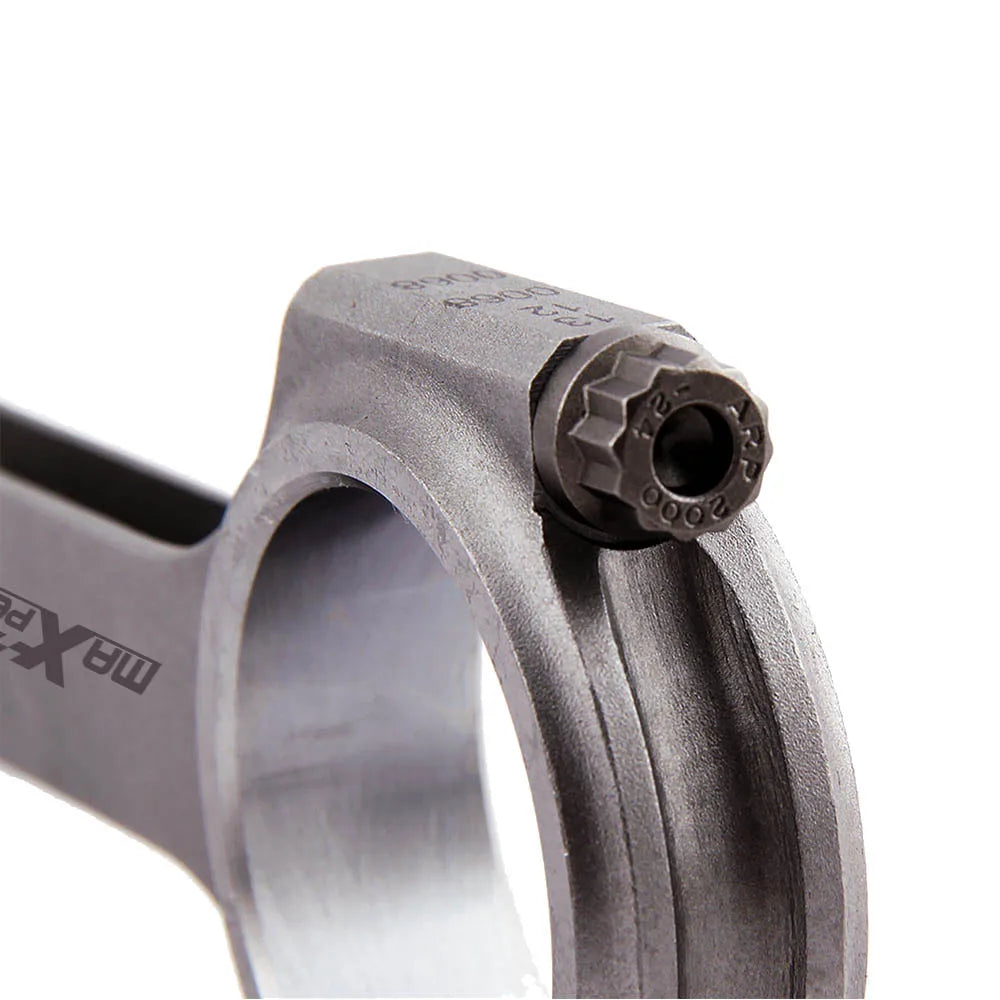

Bolts: Genuine 3/8" ARP 2000 bolts

Horse Power: 600-800HP

Claims:: No any proprietary rights,affiliate and sponsorship with the third party marks.

Warranty: Limited LIfetime Warranty

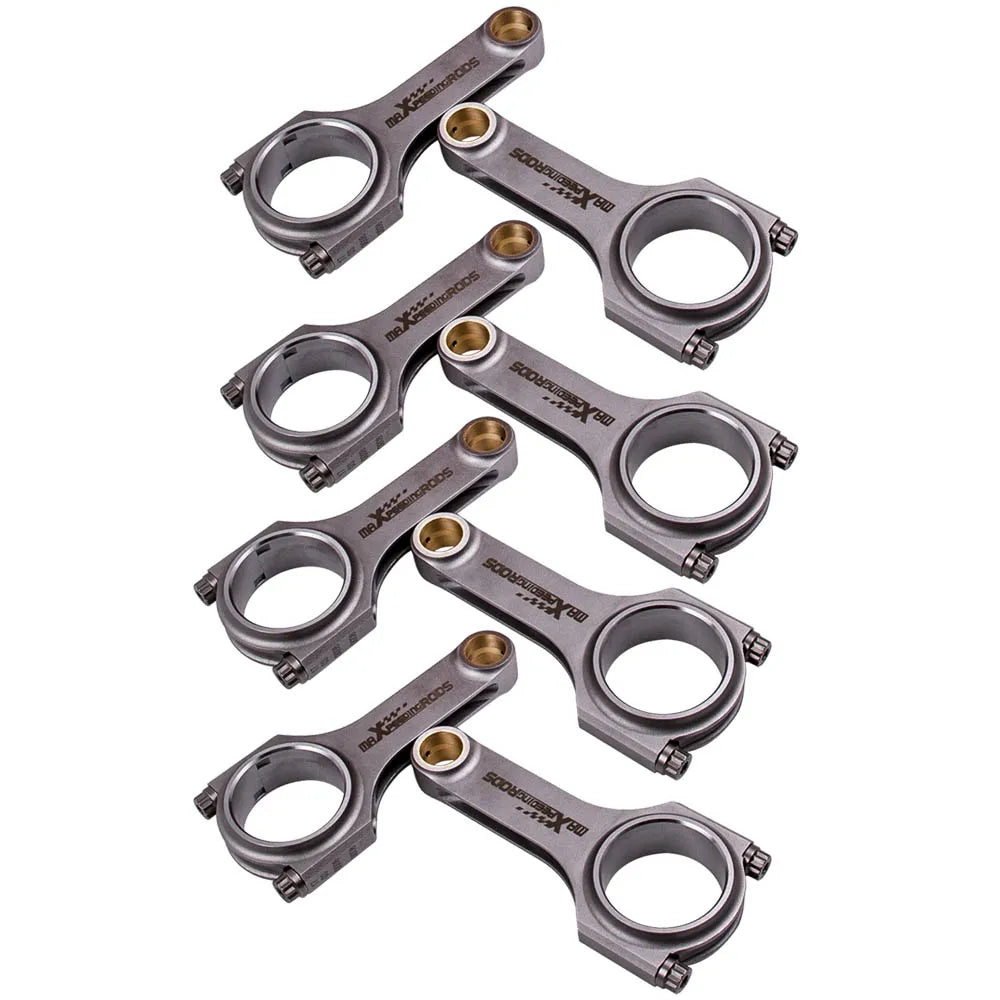

Quantity: 8 piece

Big end diameter: 52mm

Please Carefully check the Size of the Rods in Specific and Description

8x Connecting Rods for BMW M60 M60B40 4.0L M62 4.4L Conrods Rod 143mm ARP Bolts

Specification

TüV Certification Con Rods
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220.000/230.000 PSI
Torque: 48ft ≈ 65 NM
Top speed: 9000rpm
Quantity: 8 Pieces a set
Bolts: Including Genuine 3/8" ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)
Material: Forged 4340 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set

Application
for BMW M60 M60B40 4.0L M62 4.4L

Dimensions
Center to center length: 143mm
Big end diameter:52mm
Small end diameter: 22mm
Big end width: XX
Small end width: XX

Features

-Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life

-Shot Peening for improved fatigue life

-CNC machining for superior tolerances, precise as much as  +/-.0004 in

-Bronze wrist pin bushings are fitted to each rod to increased wear resistance

-H beam design greatly increases strength and durability

-Optimal balancing for weight matched sets of ± 1 gram

-Extra lubrication to minimize pin wear

-Dimensionally and magnaflux inspected to ensure extreme reliability

-100% X-rayed, sonic tested

-They mesh quality materials, precision forging, excellent craftsmanship, and high-tech designs to deliver a flawless performance for your race engine.

Note:

* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
